PID Control with BeagleBone Blue

I built a PID controller in Python using a BeagleBone Blue. I plan to make an open source version and hope to show it at Maker Faire Bay Area in May. The test frame is fabricated from welded steel tube and skateboard bearings. On one end is a motor, on the other a counterweight, and in the middle is the computer and battery.

  • The open source version will use easy to obtain materials and will not involve welding.
  • The open source Python code is at the bottom of this page.


PID means Proportional, Integral, Derivative.

The controller has a feedback loop that measures how far the lever arm is from a target angle, then adjusts the motor by using:

P = adjustment proportional to error
I = adjustment based on cumulative error over time
D = adjustment based on change in error over time

You can tune the control by changing the relative amounts of adjustment for P, I, and D.

Examples

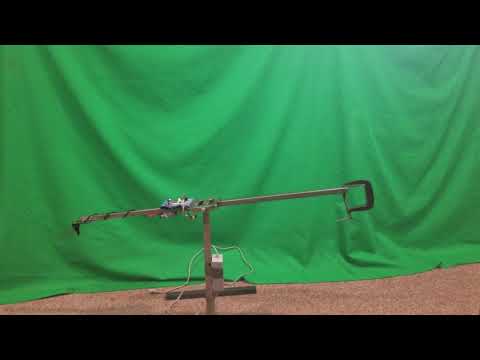

Here is the test frame running PID:
Here is the test frame running I only:
Here is the test frame running P only:
(NOTE: D only controller does not do anything)


Source Code




leo_pid.py
leo_pid.py
#!/usr/bin/env python3
# import python libraries
import time

# import rcpy library
# This automatically initializes the robotics cape
import rcpy
import rcpy.mpu9250 as mpu9250
import rcpy.servo as servo
import rcpy.clock as clock

rcpy.set_state(rcpy.RUNNING)
mpu9250.initialize(enable_dmp=True, dmp_sample_rate=100, enable_fusion=True, enable_magnetometer=True)

srvo = servo.Servo(1)
clck = clock.Clock(srvo, 0.02)
servo.enable()
clck.start()
srvo.set(-1.0)

# countdown
for i in range(0, 10):
    print(i)
    time.sleep(1.0)

# settings
kp = 0.0035  # setting for P
ki = 0.003   # setting for I
kd = 0.0035  # setting for D

# initial readings
i = 0.0
data = mpu9250.read()
t0 = time.time()
e0 = (data['tb'][0] / (2.0 * 3.1416)) * 360.0

while True:
    data = mpu9250.read()                           # read IMU
    t1 = time.time()
    dt = t1 - t0                                    # change in time since last reading
    e1 = (data['tb'][0] / (2.0 * 3.1416)) * 360.0   # pitch angle

    p = e1                                          # p is error amount
    i = i + e1 * dt                                 # i is cumulative error over time
    d = (e1 - e0) / dt                              # d is change in error over time

    pid = kp * p + ki * i + kd * d                  # math for PID
    pid = max(pid, -1.0)
    pid = min(pid, 1.0)

    throttle = -1.0 + (pid * 2.0)                   # throttle ESC range is -1.0 to 1.0
    throttle = max(throttle, -1.0)
    throttle = min(throttle, 1.0)

    srvo.set(throttle)

    print(p, i, d, throttle)
    time.sleep(0.05)
    t0 = t1
    e0 = e1
